T-slot framing is useful because it can be assembled, adjusted, and expanded without welding. But every profile behaves differently. The performance of T slot aluminium extrusion depends on its cross-section, wall layout, slot geometry, connections, span, and loading. Those details matter before the first fastener is tightened.

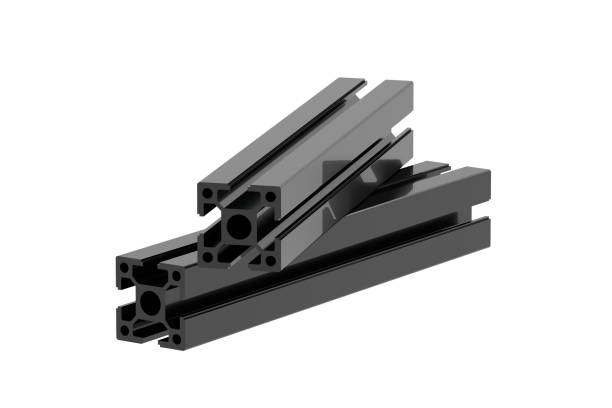

Profile Size and Cross-Section Shape
A profile’s overall size is one of the first structural details to review. Larger sections generally place more material farther from the center of the profile, which can improve resistance to bending. Still, size alone does not tell the whole story.
The internal web pattern also matters. Ribs, hollow chambers, and wall placement affect how the section handles bending and twisting. Two profiles with similar outside dimensions may behave differently because their internal geometry is not the same. This is one reason aluminum framing material should be selected by application rather than appearance.
For a short machine stand, a compact profile may be adequate. A longer unsupported beam carrying equipment or guarding may require greater stiffness. Loads, spans, and connection details need to be considered together.
Slot Geometry Affects More Than Assembly
The slot makes modular framing easy to work with, but it is also part of the profile’s structure. Slot depth, opening shape, and the material around the slot influence how fasteners and accessories engage the extrusion.
A well-matched T slot extrusion system allows brackets, panels, sensors, and other components to be mounted without drilling every connection point. During machine setup, a sensor bracket can be moved after installation instead of forcing a frame redesign.
The slot also has to work with the correct nuts, connectors, and hardware. Poorly matched components can reduce joint quality even if the extrusion itself is appropriate for the load.
Wall Thickness and Internal Ribs
Wall thickness affects how the profile responds to concentrated forces near fasteners, brackets, and mounting points. Internal ribs help distribute load through the cross-section and can improve resistance to local deformation or twisting.
An extruded aluminum T slot profile with a more substantial internal structure may suit equipment with offset loads or wide spans. That does not mean a heavier profile is always required. Extra material may be unnecessary for light guarding, small fixtures, or simple support frames.
The goal is to match profile geometry to the job. A frame that is too light can flex more than expected. A frame that is far heavier than needed adds weight without necessarily improving the design in a useful way.
Span Length and Load Direction
Even a suitable profile can perform poorly if the layout creates long unsupported spans. Deflection increases as spans grow, so adding a support or changing member orientation can matter as much as changing the extrusion.
Load direction deserves the same attention. A member may see vertical bending, side loading, torsion, or a combination of forces. Motors, actuators, doors, and mounted assemblies can place forces away from the profile centerline.
Simple layout changes can help. Adding a brace, shortening a span, or placing support under a concentrated load may improve frame behavior without changing the whole design.
Connections Can Control Frame Stiffness
A frame is not just a collection of profiles. Its joints often determine how rigid the finished structure feels. Brackets, anchor fasteners, gussets, joining plates, and other connectors transfer loads between members.
If a connection allows movement, the frame can rack even when the individual extrusions are stiff. Fastener engagement, connector type, tightening, and joint placement all affect the result. An aluminum framing kit works best when its profiles and connection hardware are intended to function together.
Modular joints also make later changes easier than welded construction in many applications. A crossmember can be shifted, a door opening changed, or a bracket added without cutting apart the original frame.
Accessories and Mounted Components Change the Load
Panels, doors, shelves, conveyors, linear motion hardware, and machine components all add forces to the frame. Their weight is only part of the issue. Mounting position can create leverage that increases bending or twisting.
A door mounted far from a vertical support, for example, can place a different demand on a frame than a fixed panel of similar weight. Moving equipment can also introduce changing loads that deserve more attention than a static enclosure.
Profile selection should therefore happen after the basic frame layout and mounted equipment are understood. MiniTec extruded aluminum framing, like other modular systems, has to be evaluated as part of the complete structure rather than as isolated pieces.
Choosing a System That Fits the Structure
The best-performing frame is usually one where the extrusion, connectors, supports, and accessories fit the actual loads and layout. Profile geometry matters, but so do span, joint design, and component placement.
For projects that need matched profiles and hardware, suppliers such as MiniTec Solutions can provide MiniTec Aluminum Framing components, custom-cut profiles, and design assistance for modular structures. Its aluminum framing material options can be useful when a project needs a coordinated system rather than separately sourced parts.
Good T slot framing starts with structure, not just convenience. A profile that fits the load path, connection method, and future modification needs is more likely to produce a frame that assembles cleanly and behaves predictably in service.
